WELCOME TO AMAZING ARCADING

Release Date Project / Event QUANTITY Order Available? PRICE Pictures
(In Stock) Code   ($US)
Nov 2016 08 November 2016, Focus Block Board, bare, designed, not made yet 0 Amp_Focus_PCB Jan 2017? $4
PCB, For Sanyo Focus Block, 2 Piece

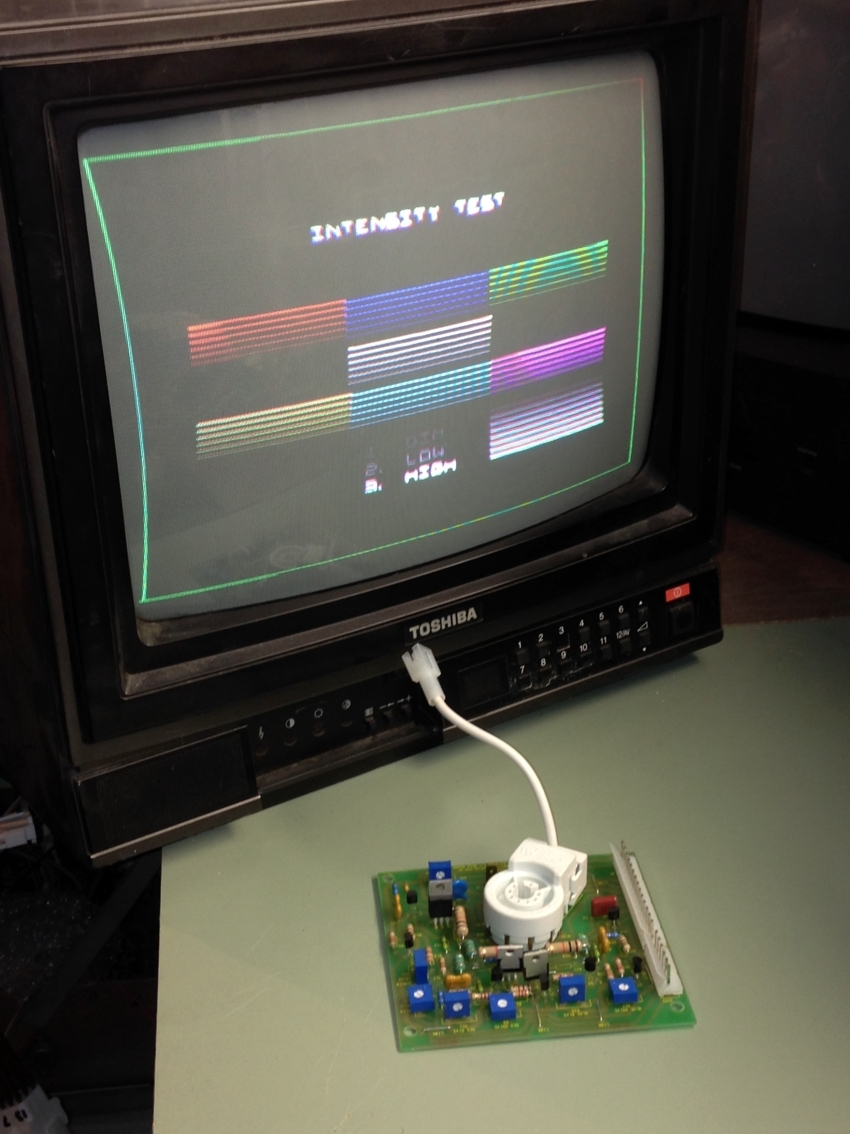

Allows you to buy one of these Sanyo Focus Blocks and make a focus assembly to suit an Amplifone HV Board. Needs 2 x 33MΩ Resistors
More Info?: KLOV
Oct 2016 Nov 2016, Transistor Adapter Type # 3, Tested, Released 50 sets of 20 Trans_ECB-EBC Nov 2016 $5.00 for 20



Transistor Pinout Adapter. Converts Old TO-220 transistors with ECB Pinouts to fit in PCB with EBC pinouts
Multi Layer boards. Tracks are hidden to not short out the board below. There is no copper on the bottom layer at all for safety
KLOV Thread
Oct 2016 17 October 2016, Amplifone HV Board, bare, Assembled, Tested, Perfect! 29 Amp_HV_2016 Oct 2016 $30
PCB, HV Bare Board (High Voltage)
Further improvements from first Repro: More room around MC1, T1, Wires, Flyback and the TO-220 Transistors. Q3 can be on the small heatsink or on the main heatsink now. Better markings for pots. +/- 24V Test Points added. Alternate Q2 Possible (IE: not MPSU-07)
More Info?: Facebook
Sept 2016 01 October 2016, Star Wars PCB Interconnect PCB, Ready to go! 19 SW_InterconKit Oct 2016 $30
PCB, Bare Board,  Plus 3 x NOS 43/86W Connectors
They come as a 4 Piece Kit, you assemble. DIY. These connectors look identical to the original Star Wars ones. Freight is lower unassembled as they are less than 20mm thick.
More Info?: Facebook
Sept 2016 01 October 2016, Star Wars PCB Interconnect PCB, Ready to go! 10 SW_Intercon Oct 2016 $40

PCB, Complete with 3 x NOS 43/86W Connectors, soldered in
They come fully assembled. These connectors look identical to the original Star Wars ones.
More Info?: Facebook
April 2016 10 September 2016, Universal HV Board, bare, for WG6100 & Amplifone, ON HOLD, needs remaking 0 Univ_HV_2016 Not Sure
PCB, HV Bare Board (High Voltage)
Looks like an Amplifone HV but is actually a WG6100. Works in both. Cheaper to build than the repro Amplifone HV, as it needs no MC1 mystery can, nor does it need a 2nd flyback to steal a focus block from.
More Info?: KLOV Thread,  Parts List (Soon)
April 2016 02 July 2016, Universal HV Board, Assembled, for WG6100 & Amplifone, PCB Design complete, under test now, progressing 0 Univ_HV_Assy Not Sure
PCB, HV Assembled Board (High Voltage) Less Flyback/Focus Block
Looks like an Amplifone HV but is actually a WG6100. Works in both. Comes with everything except the Flyback & Focus block (One part) Tell me which version you want when ordering
More Info?: KLOV Thread,  Parts List (Soon)
Dec 2015 December 2015, Amplifone Neck Board, CR23, round (V2), In stock 45 RoundNeck23 Early 2016 $9.00 Bare
PCB, Amplifone Neck board. Round like the original.
Mounts on the harness. We can supply a new CR23 CRT connector if needed. Works with your Amplifone HV board, or either of the repro HV boards (Amplifone or Universal)
More Info?: KLOV Thread
Dec 2015 December 2015, Amplifone Neck Board, CR31, round (V2), In stock 49 RoundNeck31 Early 2016 $9.00 Bare
PCB, Amplifone Neck board. Round like the original.
Mounts on the harness. We can supply a new CR31 CRT connector if needed. Works with your Amplifone HV board, or either of the repro HV boards (Amplifone or Universal)
More Info?: KLOV Thread
Oct-11 November 2015, Seconds, Blemished, CLEARANCE 10 AmpHV_2nd now $15
PCB, Amplifone HV Bare Board (High Voltage) See Pic.
Same as the one below, but on the PARTS SIDE there is some discoloration. The large heatsink, Flyback and Components will probably hide a lot of the marks. Get a bargain before they go!
More Info?: KLOV Thread (What you need), KLOV Thread (Orig Thread)
Oct-15 03 Oct 2015. Designed, checked, some improvements made, pending manuf. 0 801DEFL Not Sure
G05-801 Deflection Board
Newly designed Deflection board for the Atari Lunar Lander & early Asteroids monitors
KLOV Thread  Parts List here
May-15 28 May 2015. In stock, Tested, ready to go! 25 DB6100LV May 2015 $4.00

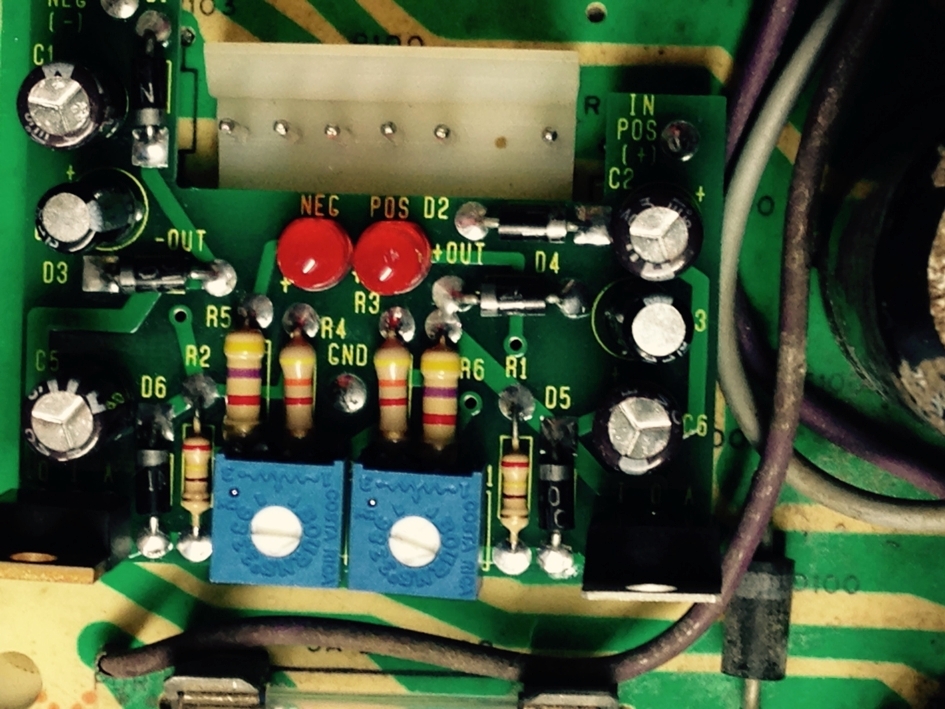

LV Section Bare PCB. Has been thoroughly tested.
New type of Low Voltage Board for your original WG6100 Deflection board. Bare board, no parts included.
KLOV Thread  Parts List here
May-15 28 May 2015. In stock, Tested, ready to go! 14 WG61Neck8 May 2015 $20.00
WG6100 Neck Board Type P328, 8 Pin Type, (Latest Version), to suit a 90 degree TV (CR31) tube
Replacement for Existing broken boards, or using 19" TV tubes in a WG6100 Monitor frame
KLOV Thread  Parts List here
Sept-14 28 May 2015. In stock, ready to go! 4 WG61Neck12 May 2015 $20.00
WG6100 Neck Board Type P328, 12Pin type, (Latest Version), to suit a 90 degree TV (CR23) tube or original 100 degree type (CR24).
Replacement for Existing broken boards, or using 19" TV tubes in a WG6100 Monitor frame
KLOV Thread  Parts List here
Mar-15 28 May 2015. In stock, ready to go! 13 WG61Defl May 2015 Intro

$60.00

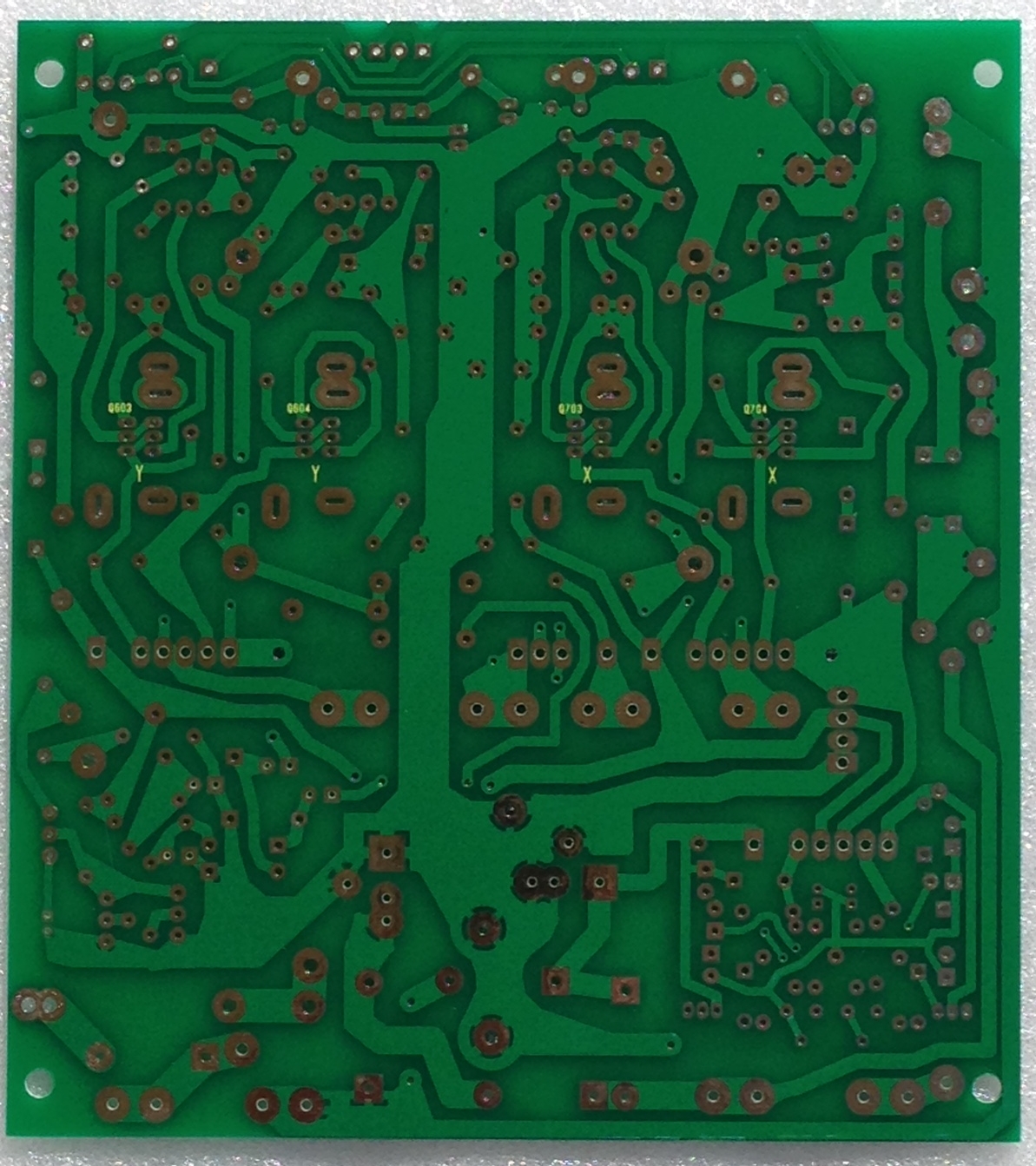

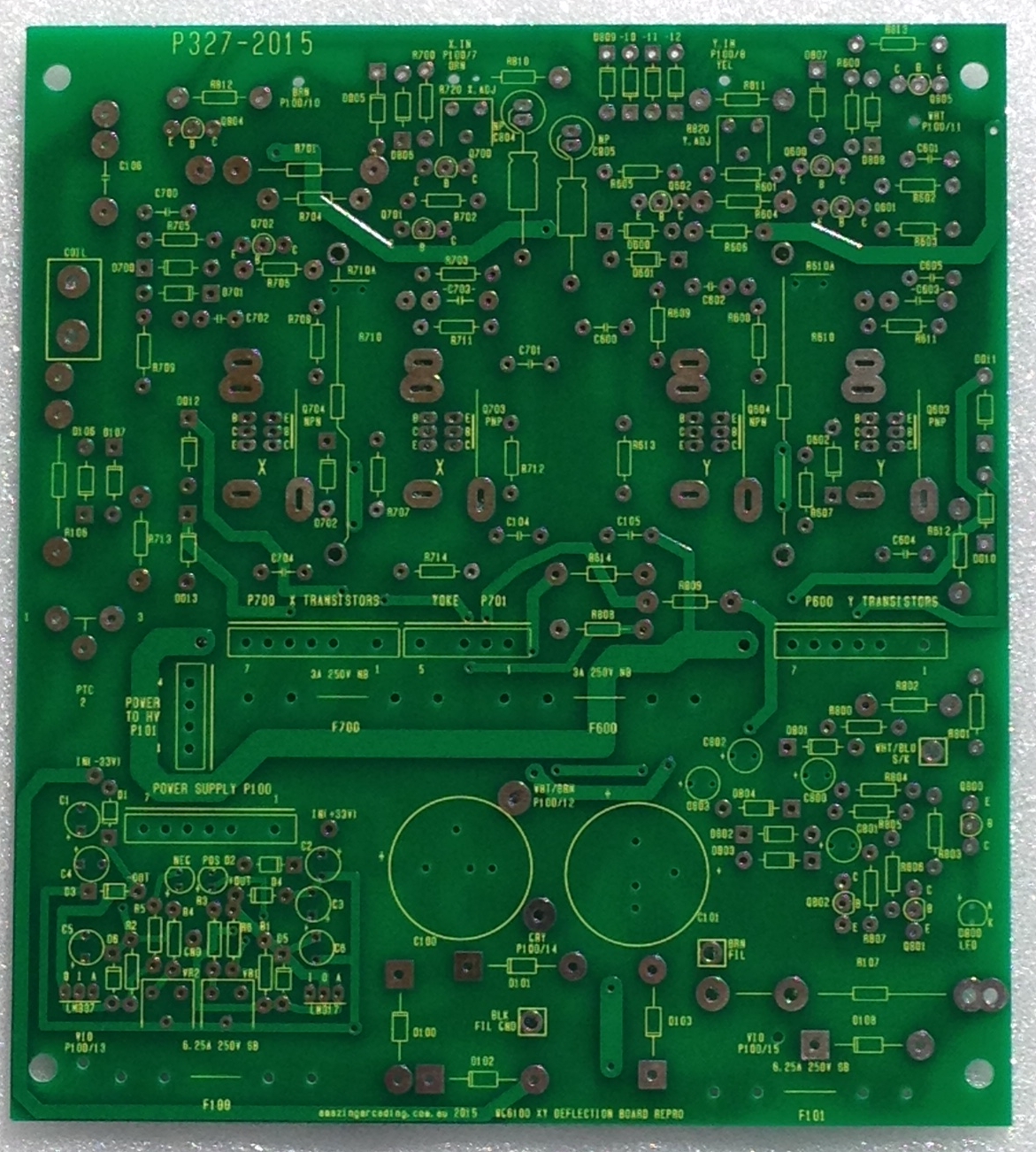

WG6100 PCB Bare Deflection board blank. P327 (Latest Version) Improvements onboard
Tested & released
KLOV Thread  Parts List Rev 4 (21-Apr-15) (.xls)
Aug-14 28 May 2015. In stock, ready to go! 16 WgIPWidth May 2015 $10.00
WG6100 Input Protection boards, new design, to also incorporate X & Y Pots for width and height.
Tested, & released
Old KLOV Thread (Skip to post # 74 on) New thread
June-14 28 May 2015. In stock, ready to go! 0 WG61HV May 2015 $30.00

Intro Price

WG6100 PCB Bare HV board. Type P329 (Latest Version)
TO-220 Transistor mounted on Cage has been moved.
KLOV Thread  Parts list here
Mar-15 01 April 2015, Assembled & Tested, Released 4 CR_Changer1 April 2015 Intro

$35.00

CR CHANGER # 1

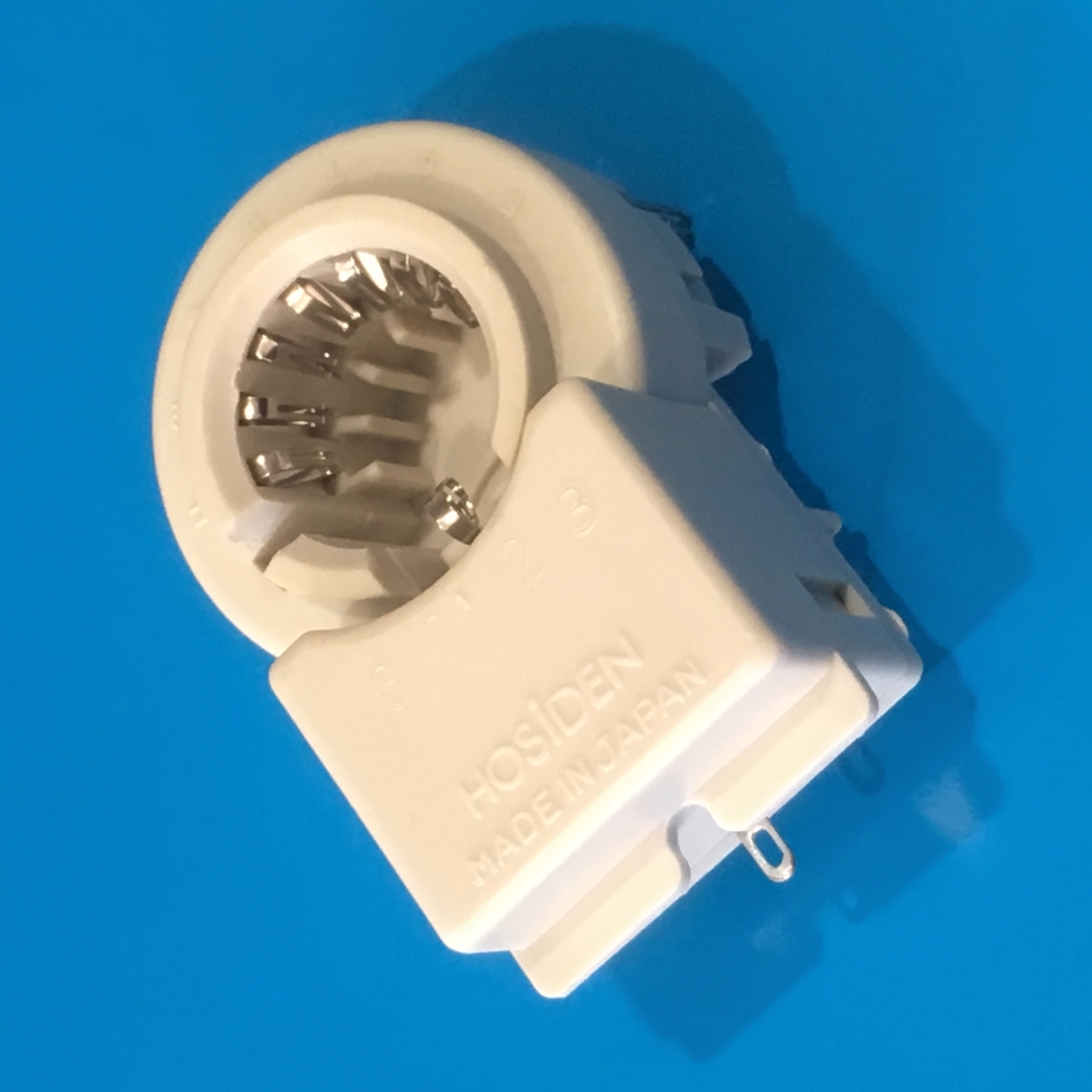

CRT Adapter: This will let you use a CR23 Chassis (10 pin) to run a CR31 (8 pin) CRT/TV Tube - See pics, Added 09 Apr 15
KLOV Thread For Sale Thread
Mar-15 01 April 2015, Assembled & Tested, Released, Out of Stock 2 CR_Changer2 April 2015 Intro

$37.00

CR CHANGER # 2
CRT Adapter: This will let you use a CR24 Chassis (10 pin) to run a CR31 (8 pin) CRT/TV Tube
KLOV Thread For Sale Thread
Mar-15 01 April 2015, Assembled & Tested, Released 10 CR_Changer3 April 2015 Intro

$33.00

CR CHANGER # 3

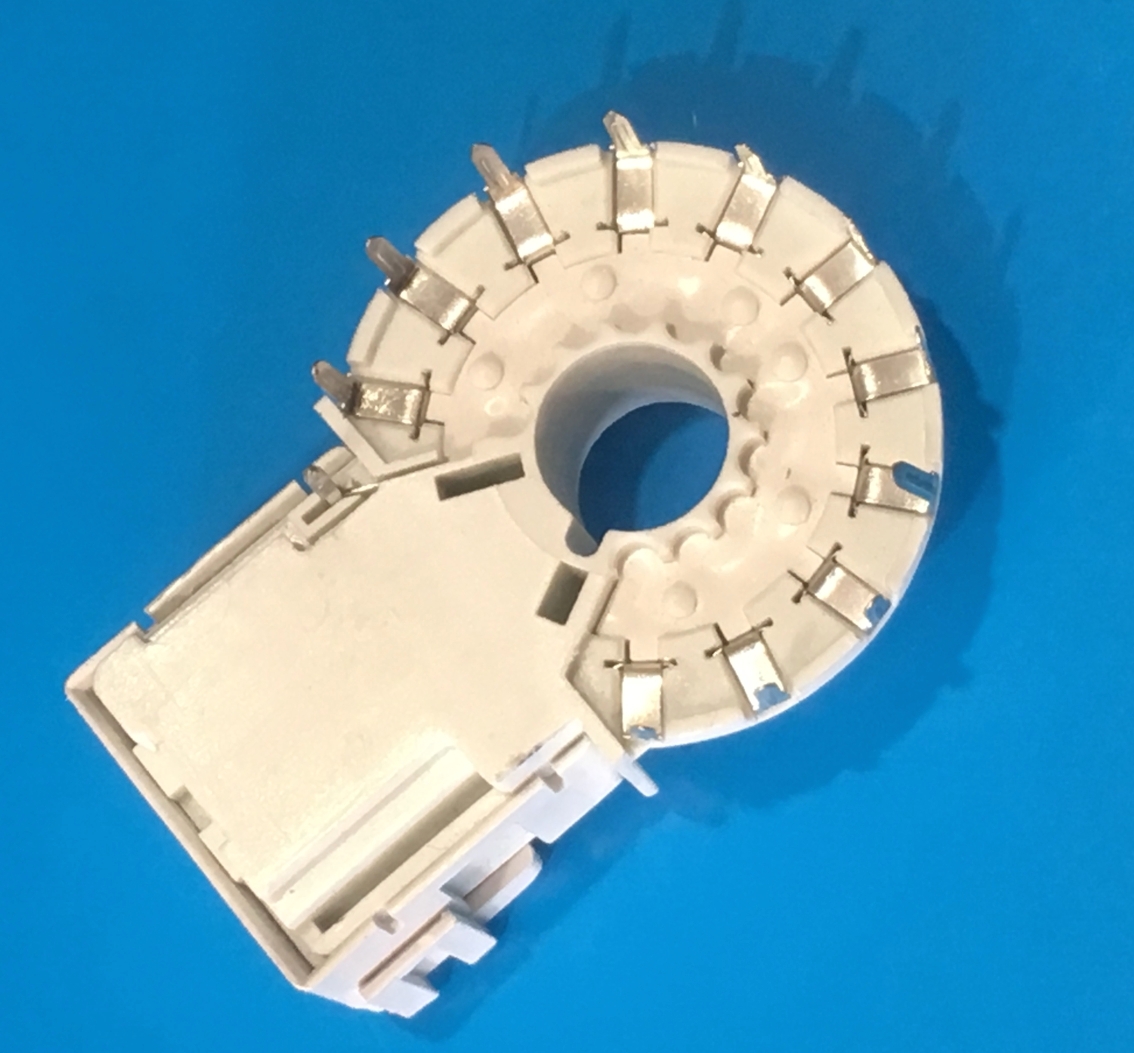

CRT Plug: This will let you use a CR23 Chassis (10 pin) to run any compatible tube - reuse your CRT connector
KLOV Thread For Sale Thread
Mar-15 01 April 2015, Assembled & Tested, Released, Out of Stock 0 CR_Changer4 April 2015 Intro

$35.00

CR CHANGER # 4
CRT Plug: This will let you use a CR24 Chassis (10 pin) to run any compatible tube - reuse your CRT connector
KLOV Thread For Sale Thread
Mar-15 01 April 2015, Assembled & Tested, Released 5 CR_Changer5 April 2015 Intro

$32.00

CR CHANGER # 5
CRT Plug: This will let you use a CR23 or CR24 Chassis (10 pin) to run any compatible tube - reuse your CRT connector
KLOV Thread For Sale Thread
Jul-12 28 May 2015. In stock, ready to go! 35 SW-Flat-Int 30 days $15

Reduced

Star Wars Test rig interconnect.
Replaces the small 43/86 Way 2.54mm 3 way interconnect, Allows testing of the SW board set with all boards flat on a bench. Wiring harness may need to be made for the 3.96mm PCB edge connectors, or either of the 22/44 way connector or 15/30 way connector may need extending. Called "VIKING 3VH43" etc. If he is out, HERE is another option
More Info?: KLOV Thread
Sept-14 08 Nov 2014, In stock 48 Molex_Ins Oct 2014 $3.00

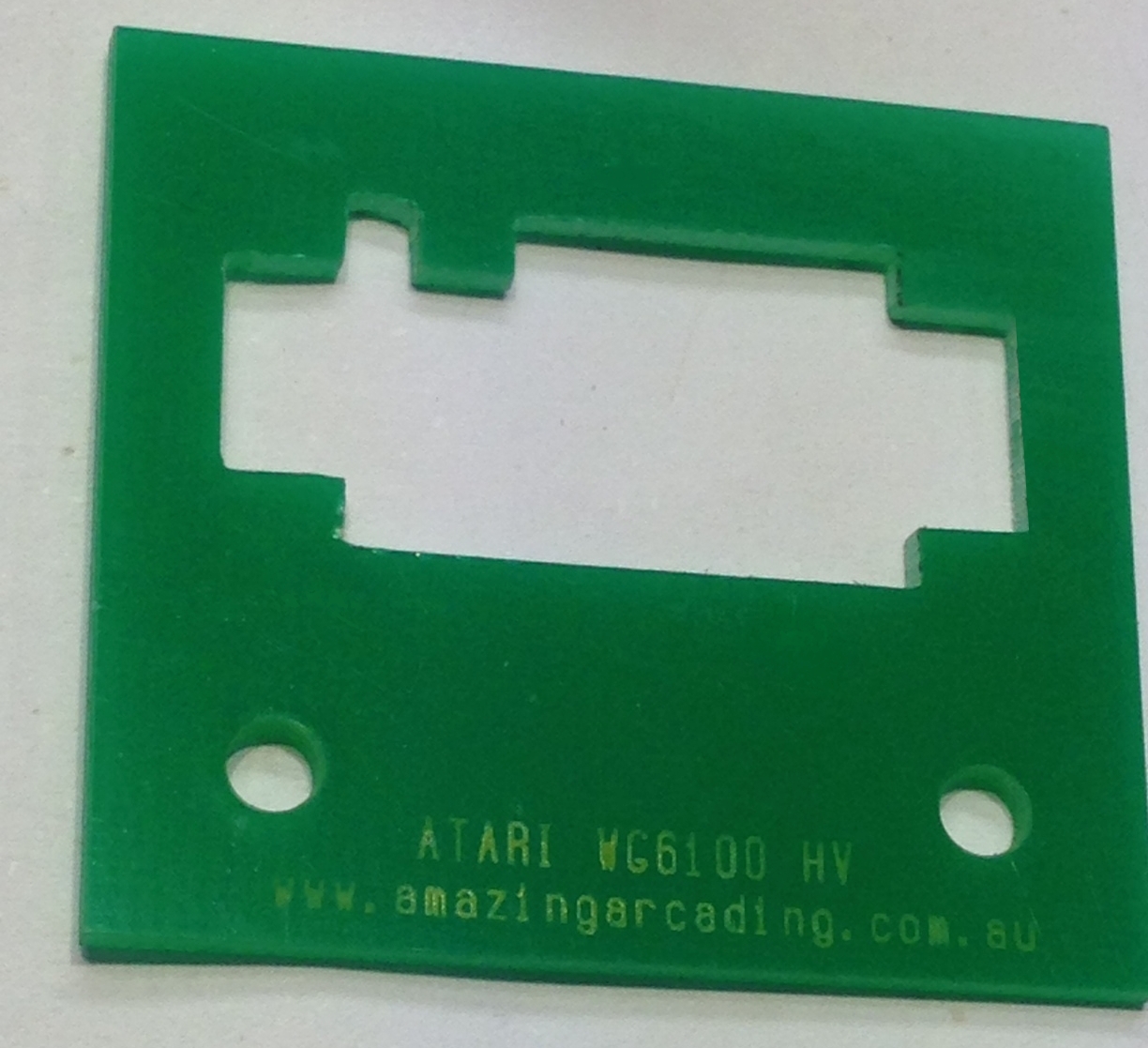

WG6100 Insulator on the HV for the 2 Pin Molex
KLOV Thread
Aug-14 30 July 2014, Tested, Released 40 WgWidth July 2014 $4.00
WG6100 (or other vectors) Width PCB, Incorporating X & Y Pots for width and height. We can help you find the place to solder to
Old KLOV Thread (Skip to post # 74 on)
Aug-14 30 July 2014, Neck PCB, 14", To be tested 20 LAI-KZ-Neck14 AUG 14 $20.00
LAI-KZ-14XYB Monitor Neck Bare PCB.
B&W Vector XY Bare Neck PCB. Status: In production. NOS CRT sockets sourced also
KLOV Thread
Aug-14 30 July 2014, Neck PCB, 20", To be tested 19 LAI-KZ-Neck20 AUG 14 $20.00
LAI-KZ-14XYB Monitor Neck Bare PCB.
B&W Vector XY Bare Neck PCB. Status: In production. NOS CRT sockets sourced also
KLOV Thread
Aug-14 08 Nov 2014, Released 26 sets of 20 Trans_1-7H JULY 14 $5.00 for 20
Transistor Pinout Adapter. Converts Old TO-220 transistors to modern BCE pinout, 7 hole version
Double sided board, allowing for all possibilities of transistors pinouts to become any other pinout config. Bottom side unmarked
KLOV Thread
Aug-14 30 July 2014, Transistor Adapter Type # 2, Tested, Released 20 sets of 20 Trans_2-6H JULY 14 $5.00 for 20
Transistor Pinout Adapter. Converts Old TO-220 transistors to modern BCE pinout, 6 hole version
Double sided board, Both sides marked
KLOV Thread
Aug-14 30 July 2014, Transformers, Tested, Passed, New Design now done, parts in stock 2 T901 AUG 2014 $30.00
Driver Transformer T901, bases re-designed, received & prototype transformer has been tested in an original WG6100 HV Board. Different to Amplifone T1 - see here
T901 possibly ready in 1 month, more bobbins on the way, due to high demand
KLOV Thread
Unknown 08 November 2014, Concept Designed, Unlikely to be done 0 PatNeck14 ?? Probably $30.00



 Original /14 pin Repro

XY, Vector Chassis Neck PCB, bare, 13" type, for PAT9000 Atari Test Box
Available in 12 Pin (CR30, Neck size same as CR23)
KLOV Thread
May-14 14 June 2014, Final Assy Done, Tested, Passed, Released for sale 10 PatMain MAY 2014 $85.00



XY, Vector Chassis Main PCB, bare, 13" & 19" type,  PAT9000 Atari Test Box
Accepts Cinelabs Flyback
KLOV Thread
May-14 20 Oct 2014, Ready to go. For the Flyback Shield and focus block only - 4 pieces 6 PatMetal MAY 2014 $35.00
XY, Vector Chassis Main, Metal work set, PAT9000
Made by Takeman, includes mesh cover, and 2 brackets
KLOV Thread
May-14 14 June 2014, Final Assy Done, Tested, Passed, Released for sale 24 PatNeck12 MAY 2014 $30.00



 Original /12 Pin Repro

XY, Vector Chassis Neck PCB, bare, 19" type, for PAT9000 Atari Test Box
Available in 8 Pin (CR31) Also
KLOV Thread
May-14 14 June 2014, Final Assy Done, Tested, Passed, Released for sale 16 PatNeck8 MAY 2014 $30.00



 Original /8 pin Repro

XY, Vector Chassis Neck PCB, bare, 13" type, for PAT9000 Atari Test Box
Available in 12 Pin (CR23, or CR24) Also
KLOV Thread
Unknown November 2013, Designed, priced, needs tweaking 0 - Unlikely
WG6100 HV Metal Cage and grill
Intended for Local Purchasers (AU etc) - Unlikely to proceed

Apr-13 April 2013, Fully tested, Released 8 AmpNeck8 2 weeks $30.00

incl. sleeve

Neck Board, Complete, Amplifone, 8 Pin, Status: Complete, for use with 8 pin TVs CRTs (Pic is an example) (Type CR31 CRT Socket) Ask me for a sleeve if re-using an Amplifone yoke on a small neck tube. See rewinding thread here
Tested and working, comes complete with CRT Socket, 20KV cable to reach Focus Block, 3 x resistors. Replaces the original harness mounted round connector socket.
KLOV Thread
Mar-13 MARCH 2013, Released 20 AmpDefl 30 days $60.00

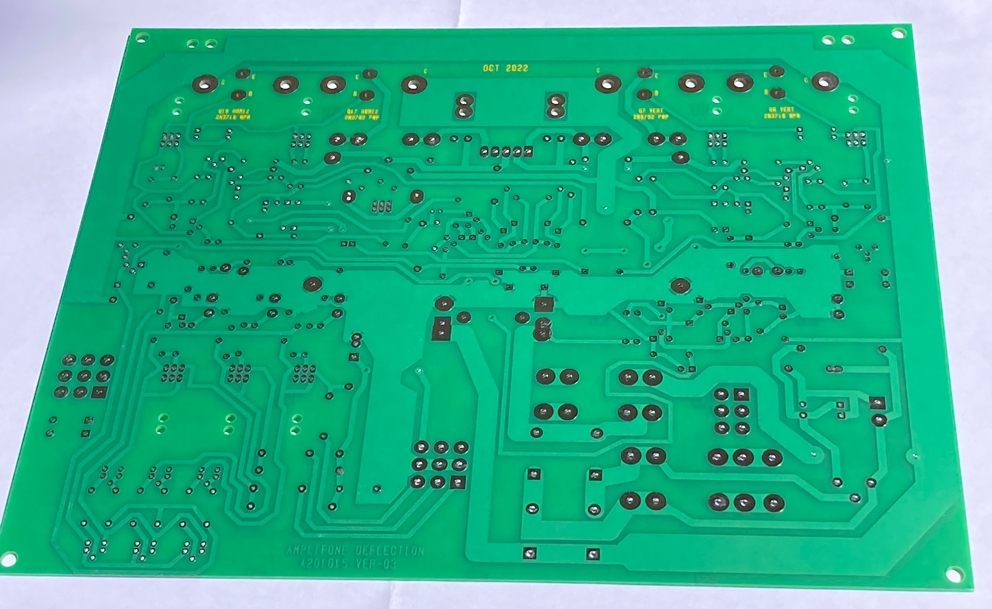

PCB, Amplifone Deflection Board Bare Board.
Improvements: Pots incorp. on board. More parts labeled, Alternative transistors and power resistors confirmed as successful. Removable harness. Inline fuses added on 24V+ & - lines to HV Board. NO wire Links, all removed. 12VDC supply added on board, for cooling fan near heatsink
More Info?: KLOV Thread
Jul-12 JUL / AUG 2012, Prototype PCBs arrived, Started to assemble 5 LAI-KZ-Set 30 days $50.00
LAI-KZ-20XYB Chassis Bare PCB.
B&W Vector XY Bare Chassis PCB. Status: In production. Improvements to be made include spots for the floating pots, remote pot control board
KLOV Thread
Oct-11 September 2016, run out of this batch, see top of page for new release "Amp_HV_2016" Discontinued

New Version above, see

Amp_HV_2016

AmpHV N/A Was $30
PCB, Amplifone HV Bare Board (High Voltage)
Improvements made: 50W Resistors mount on heatsink. Diode Mods incorporated. Alternate small heatsink.
More Info?: KLOV Thread (What you need), KLOV Thread (Orig Thread)
Oct-11 October 2011, Released, New Design now done, parts in stock 2 T1 4 Weeks $30.00

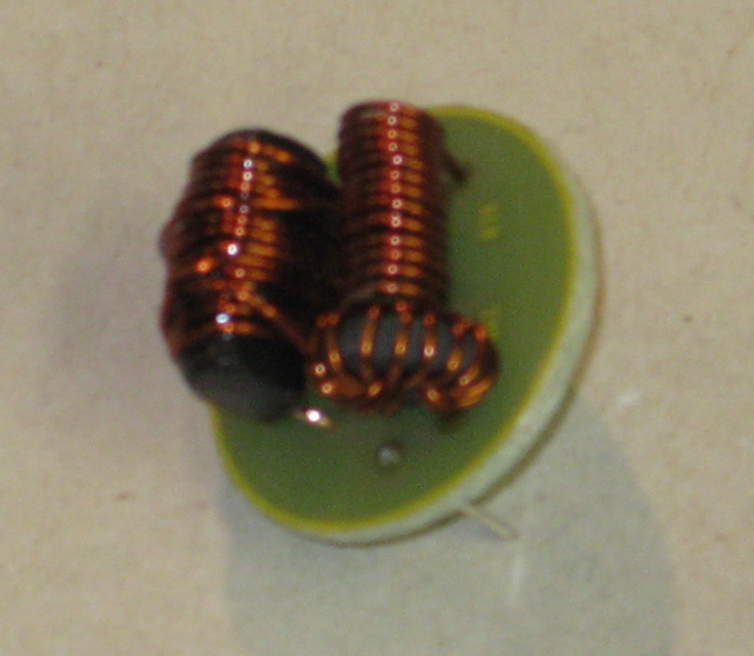

Transformer T1, Amplifone HV Board, Repro
Tested and working
New stock in, more can be assembled quickly
Oct-11 October 2011, Released, (Oct 15: Ceasing production soon) 2 MC1 4 Weeks $30.00
MC1, Mystery Can, Amplifone, Repro, Status: Complete.
A fully compatible reproduction
New stock in, more can be assembled quickly
Oct-11 October 2011, Fully tested, Released 3 AmpNeck12 2 Weeks $30.00

Neck Board, Complete, Amplifone, 12 Pin, Status: Complete, for use with 12 pin TVs CRTs (Pic is an example) (Type CR23 CRT Socket)  See rewinding thread here
Tested and working, comes complete with CRT Socket, 20KV cable to reach Focus Block, 3 x resistors. Replaces the original harness mounted round connector socket.


EMAIL US TO ORDER: amazingarcading@iinet.net.au
